Vertiv

526600033012

http://www.vertiv.com/

Vertiv Liebert

3000

GXT MT+ CX

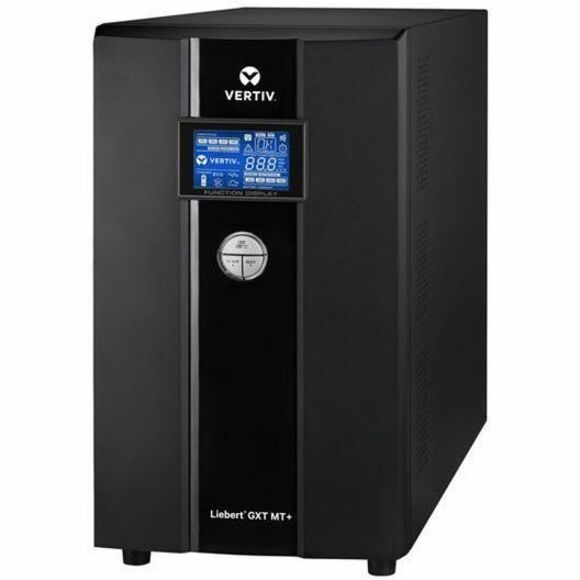

GXT MT+ CX 3kVA UPS 2400W 230V Online Double Conversion UPS

The Vertiv Liebert GXT MT+ CX 3kVA SB Uninterruptible Power Supply is a high-performance, true online double conversion system designed for critical applications like data centers and financial institutions. It is equipped with an LGBT-based rectifier, and its DSP control technology helps ensure reliability. The unit has a new LCD display for easy monitoring of UPS data, alarms, and fault diagnostics. It offers a double-conversion efficiency of up to 90% and has an active input power factor correction of .99. With a wide input voltage range of 110-280 Vac, configurable output voltage options, and generator compatibility, the GXT MT+ CX is optimized for various environmental conditions. Its 4-stage extendable charging design and adjustable battery charging current enhance battery performance and runtime. The UPS also supports intelligent monitoring through standard RS232/USB ports and has a slot for additional communication options.

Double Conversion Online UPS

Yes

IEC 60320 C13

4 x IEC 60320 C13

• Fuse
• Brownout
• Output Short Circuit
• RFI
• Surge
• Under Voltage
• Black Out
• Power Failure
• Output Over Voltage
• Over Charge
• Noise
• Short Circuit
• Thermal Overload
• Deep Discharge
• Soft Start
• Over Temperature
• Over Loading
• Inrush Current
• EMI
• AC Noise
• Sag
• Electric Shock
• Lightning
• Temperature
• Transient
• Discharge
• Quad
• Output Over Current
• Low Battery
• High/Low Voltage
• Over Current
• Electronic Current Limit
• Under Current
• Line Noise
• Over Voltage
• Spike
• AC Surge
• Over Power
• Excessive Low Battery

Yes

Single Phase

• IT Infrastructure
• Mission Critical Equipment
• Data Center
• Voice/Data Network
• VoIP
• Bank

3 kVA

2.40 kW

230 V AC

240 V AC

Sine Wave

LCD

Yes

No

No

Yes

Yes

10 Minute

No

31.75 cm (12.50")

19.05 cm (7.50")

41.91 cm (16.50")

5U

Tower

27.58 kg

No

China

No

1 Year
